X-ray Inspection of Liquid & Paste-Like Products

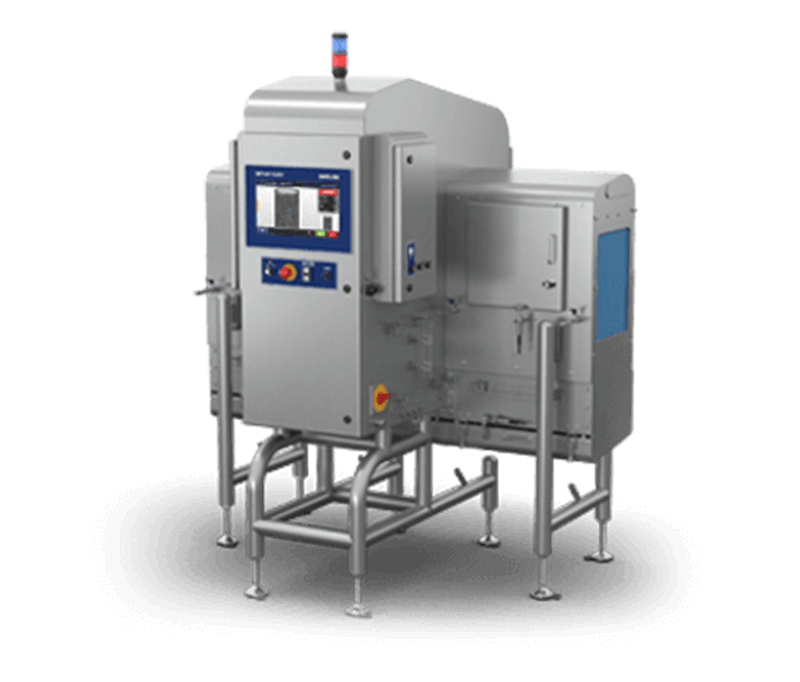

X-ray X38 Series

The X38 pipeline X-ray detector is used for inspecting creamy and paste-like products, as well as gels, ensuring product safety before final packaging and protecting your brand. The X38 pipeline system can detect contaminants such as glass, metal, mineral stone, calcified bone, and high-density plastic and rubber compounds.

Automatic Calibration
Automatic calibration is completed in less than 20 seconds, maximising continuous uptime.

Robust Design
The robust system design enables easy access to all parts. The standard IP69* protection rating allows pressure washdown with water.

Reject Mechanism
Various fully integrated, high-speed automatic reject valves are available. The correct selection depends on a number of factors, such as the type of environment, line speed, and product type.

Specification Values
Throughput Up to 14 tonnes per hour, depending on the application and pipe diameter
Pipe diameter 2.5″, 3.5″, or 4″ — 63 mm, 75 mm, and 100 mm — as standard; others on request
Power supply 208–240 VAC, single-phase, 50–60 Hz, 6 A
X-ray detector 300 mm, 0.8 mm diode size — 0.4 mm optional
X-ray generator 270 W, 60 kV, 4.5 mA, glass tube
X-ray source Single source
Cooling IP69 air cooling
X-ray emission < 1 µSv/h
High throughput With high throughput capability, the X38 can inspect up to 14 tonnes per hour.
Display 15″ colour touchscreen.
Robust hygienic design Sloped and rounded-edge design enables water runoff during cleaning.
Chiller Chiller with IP69 protection rating for pressure washdown.
Efficient reject system The integrated reject valve can be synchronised with the pump, ensuring fast removal of contaminated products.
Easy access to all machine parts Designed to provide the operator with easy access to all parts of the system.
Industry Products
Bakery Jams, syrups, cake mixes, fillings
Confectionery Melted chocolate, nougat, sugars
Dairy Butter, ice cream, yoghurt
Fish and Seafood Fish spread, processed fish for ready meals
Fruit and Vegetables Purées, mousses, compotes, juices, chopped fruit and vegetables
Meat Minced meat for sausages, pies, and pasta
Cosmetics Creams and lotions, soaps
Pharmaceuticals Creams
Ready Meals Sauces, soups

Specification Values
Throughput Up to 14 tonnes per hour, depending on the application and pipe diameter
Pipe diameter 2.5″, 3.5″, or 4″ — 63 mm, 75 mm, and 100 mm — as standard; others on request
Power supply 208–240 VAC, single-phase, 50–60 Hz, 6 A
X-ray detector 300 mm, 0.8 mm diode size — 0.4 mm optional
X-ray generator 270 W, 60 kV, 4.5 mA, glass tube
X-ray source Single source
Cooling IP69 air cooling
X-ray emission < 1 µSv/h

High throughput With high throughput capability, the X38 can inspect up to 14 tonnes per hour.
Display 15″ colour touchscreen.
Robust hygienic design Sloped and rounded-edge design enables water runoff during cleaning.
Chiller Chiller with IP69 protection rating for pressure washdown.
Efficient reject system The integrated reject valve can be synchronised with the pump, ensuring fast removal of contaminated products.
Easy access to all machine parts Designed to provide the operator with easy access to all parts of the system.

Industry Products
Bakery Jams, syrups, cake mixes, fillings
Confectionery Melted chocolate, nougat, sugars
Dairy Butter, ice cream, yoghurt
Fish and Seafood Fish spread, processed fish for ready meals
Fruit and Vegetables Purées, mousses, compotes, juices, chopped fruit and vegetables
Meat Minced meat for sausages, pies, and pasta
Cosmetics Creams and lotions, soaps
Pharmaceuticals Creams
Ready Meals Sauces, soups
