Industrial Inkjet Printer
Videojet® 1710
Pigmented Inkjet Marking for High-Contrast Codes
Continuous Inkjet Printer with Pigmented Inks for High-Contrast Printing
The Videojet 1710 small character inkjet printer is specially designed for applications that require easily readable variable codes on dark surfaces or materials that are difficult to mark.
The printer uses high-contrast pigmented inks to create bright, clean prints on surfaces where standard fast-drying inks are not effective.

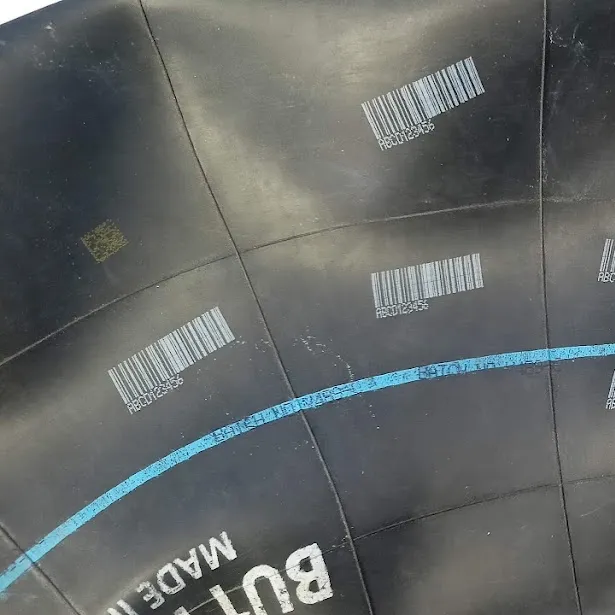

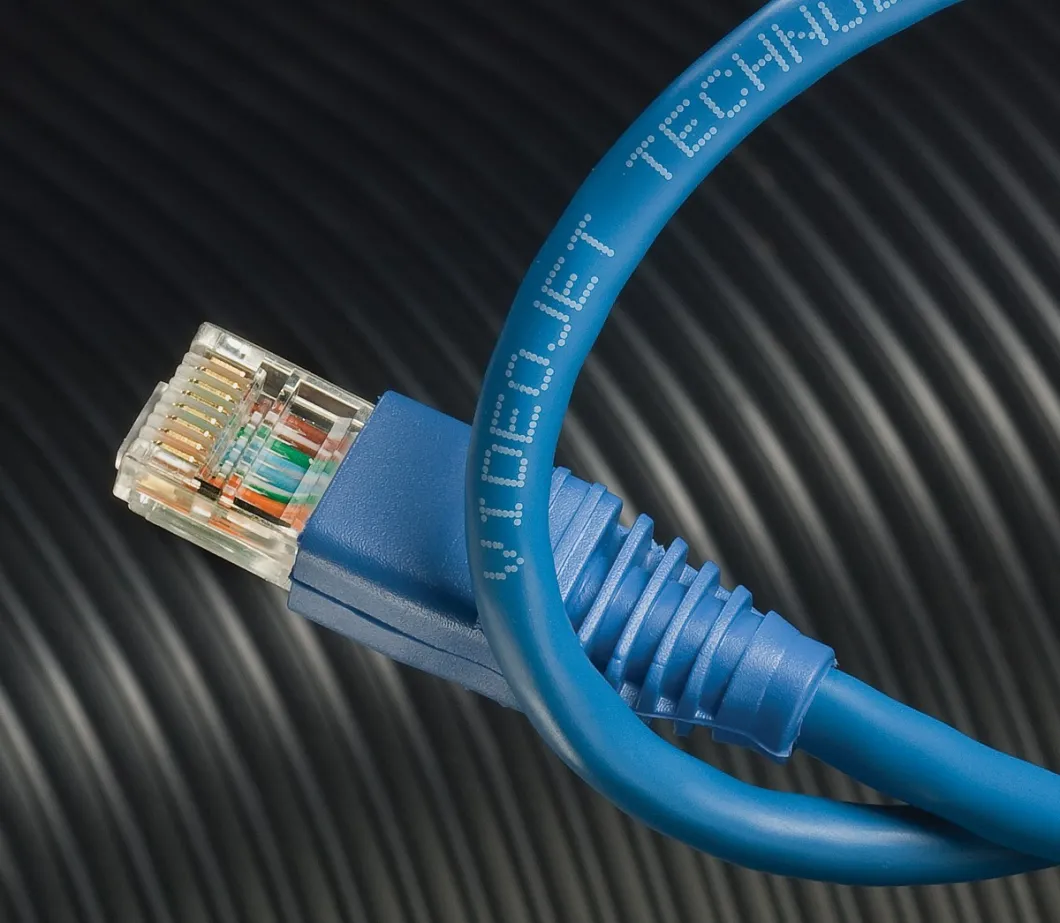

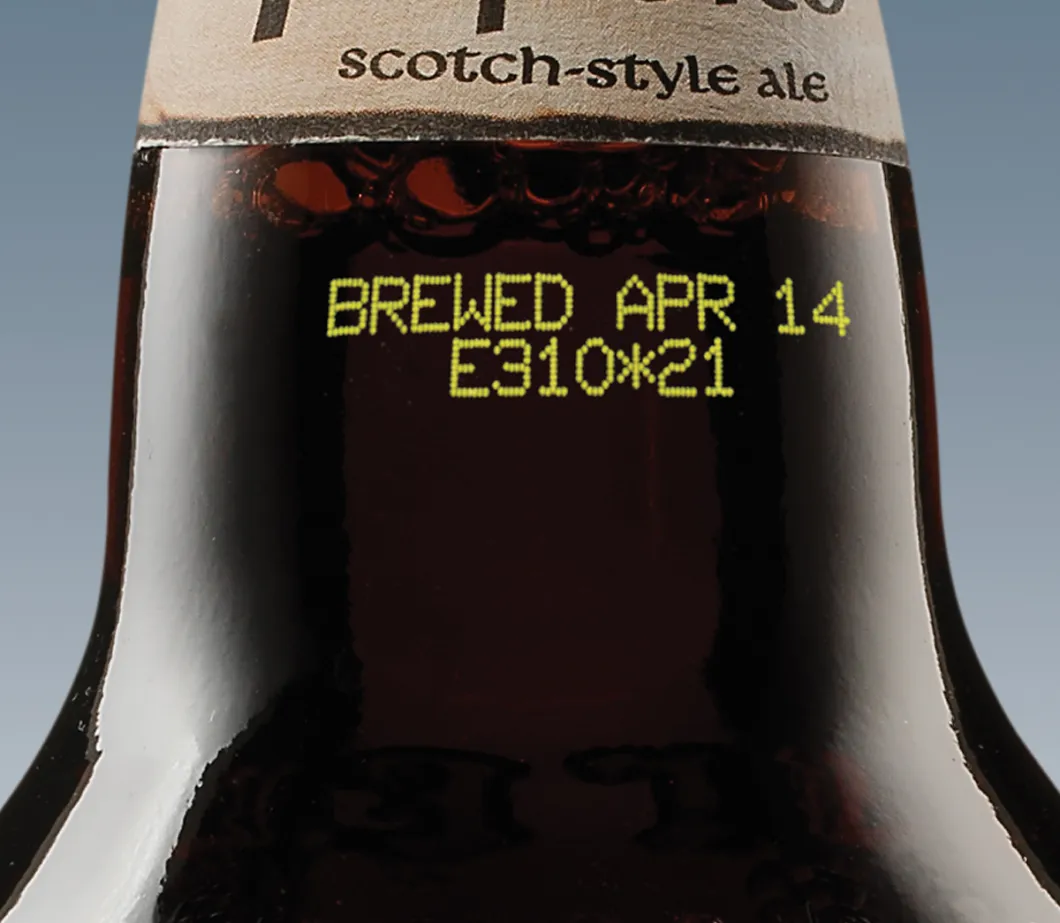

Such surfaces include coloured glass, rubber tubes, plastic cables, and other dark-coloured materials.
It supports printing in a wide range of fonts and languages, as well as linear barcodes, DataMatrix codes, logos, and graphics on moving products.
| Specification | Description |
|---|---|
| Printhead | 1 |
| Inks | Pigmented |
| Maximum number of print lines | 5 |
| Maximum print speed | 271 m/min |
| Protection rating | IP55 — IP65 option |
| Routine service interval | 4,000 operating hours or 12 months, whichever comes first |
| Hose length | 3 m, optional 6 m |
| Number of stored messages | 250 |
| Smart Cartridge™ fluid delivery system | Yes |
| Plug and Play modular printhead | Yes |
| USB | Yes |
| Communication | Ethernet and RS-232 |
| Internal air pump / CleanFlow™ | Yes |
| Additional input/output connections | Optional |
| Display | LCD display with membrane keyboard |
Capable of Meeting High-Capacity Production Requirements
- Dynamic Calibration™ automatically adjusts print parameters to ensure high-quality printing at all times.
- The unique fluid flow system ensures proper pigment dispersion during printing or when the printer remains idle for longer periods.
- Prints 1 to 5 lines at high speeds.
- Single-line printing — maximum speed 271 m/min.
Designed for Intensive Use – Improved Uptime
- CleanFlow™ technology prevents ink build-up in the printhead, which can cause downtime in other printers.
- The new conical ink reservoir reduces the natural effects of pigment settling.
- Long operating time between routine services: up to 4,000 operating hours or one year, whichever comes first.
- Printhead with automatic flushing for fast start-up, even after long periods of inactivity.
- The internal positive air pump does not use external air, reducing the possibility of contaminants entering the ink flow.
No Mess or Spills
- The innovative fluid flow system provides simple and reliable uninterrupted fluid flow through the system, without significant operator intervention.
- The Smart Cartridge™ fluid delivery system virtually eliminates spills and alerts the user if the incorrect fluid has been used.
Easy Operation via the Standard Videojet CIJ Interface
- Clear, high-contrast WYSIWYG display and functional keyboard for easy operation.
- Multiple user access levels — operation is separated from installation and maintenance.
- Option to predefine data entry fields, reducing the possibility of operator error.

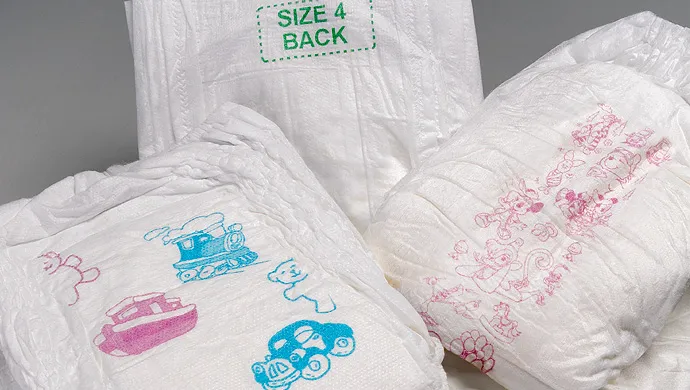

- Printing in white, yellow, light blue, red, and black.
