Thermal Inkjet Printers
Videojet® 8520
Videojet 8520 Thermal Inkjet Printer is a high-resolution printer that uses HP® technology.
This versatile device features a large CLARiTY™ touchscreen for easy operation and provides a familiar look and feel for users experienced with Videojet printers using the CLARiTY interface.

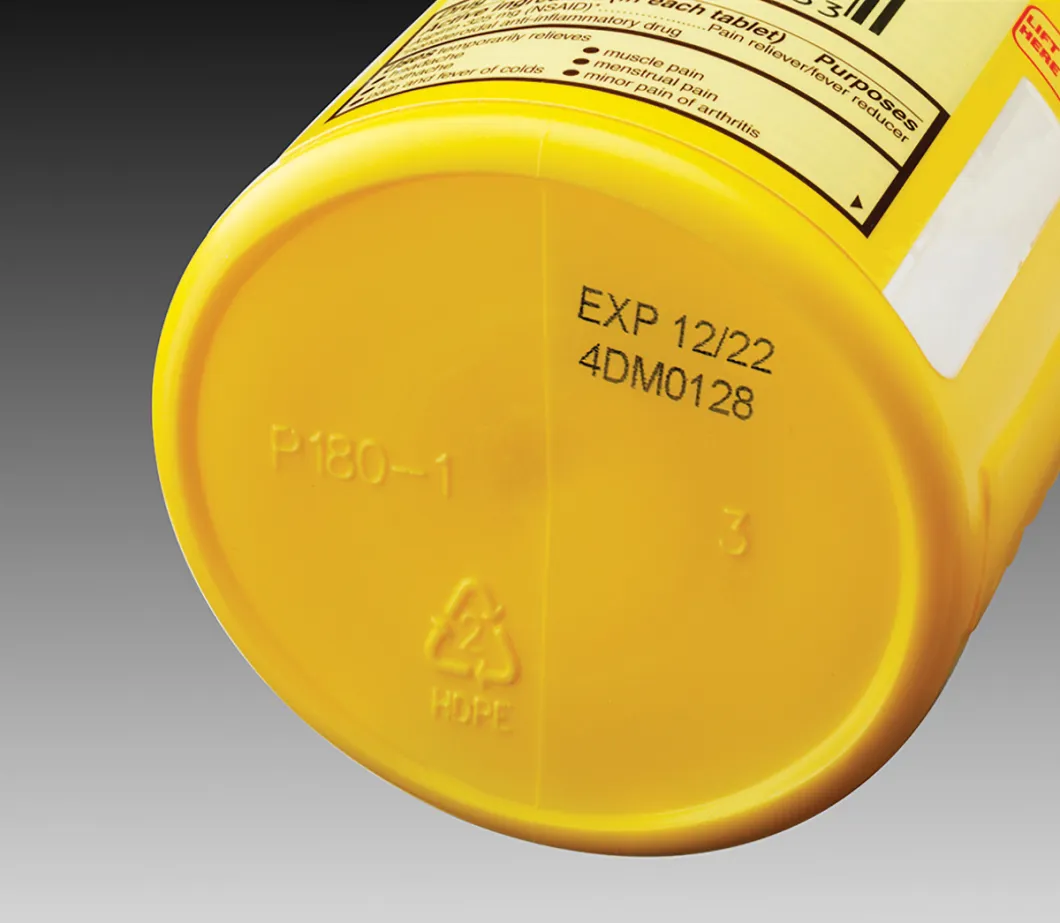

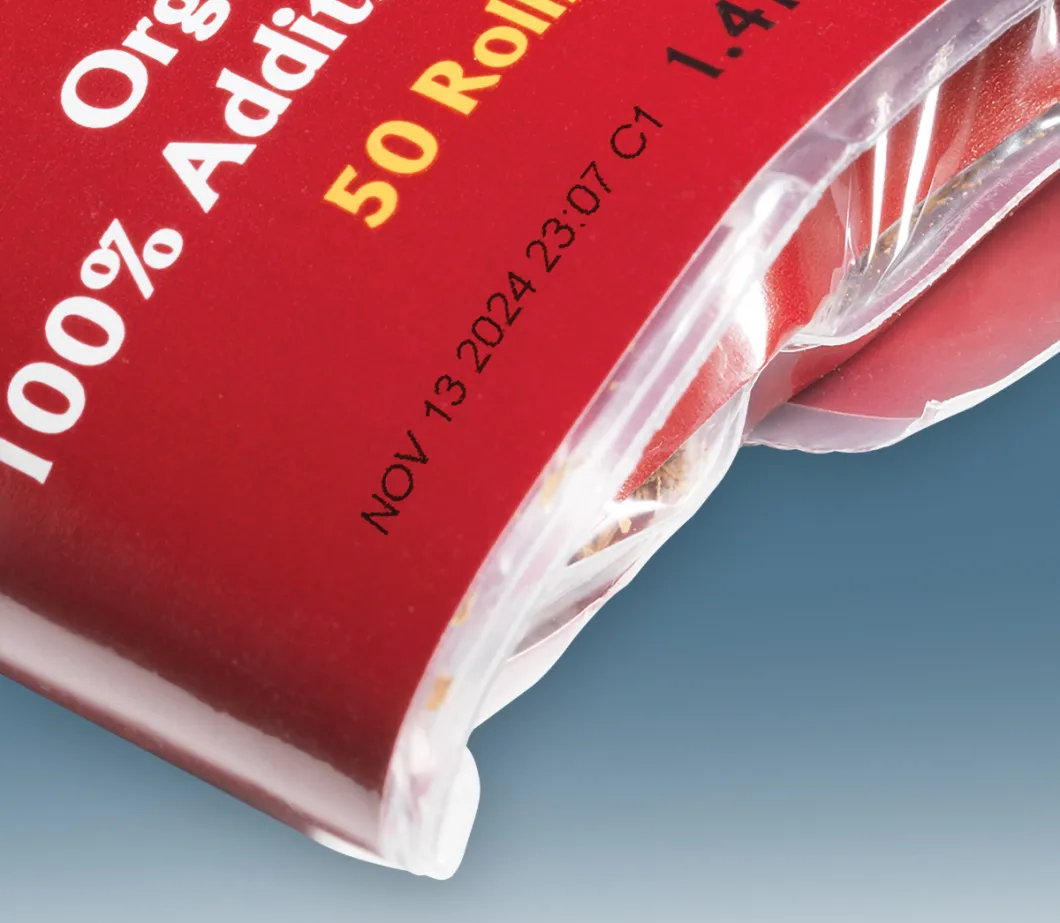

From basic alphanumeric codes to complex barcodes and graphics, the Videojet 8520 enables printing of a wide range of codes on high-speed production lines.
| Specification | Values |
|---|---|
| Maximum print resolution | 600 × 600 dpi |
| Print speed (1) | 1.5–109 m/min |
| Barcodes | Linear and 2D barcodes, including DataMatrix |
| Print height per printhead | 12.7 mm |
| Maximum number of printheads | Up to 4 |
| User interface | CLARiTY™ SVGA 8.4″ colour LCD touchscreen |
| Communication | RS232, Ethernet, USB, ZPL command unit, binary and text commands |
Simple Operation – Operators Focus on the Product, Not the Printer
8.4″ colour touchscreen with icon-based commands, very easy to operate.
Clean handling of HP technology cartridges virtually eliminates spills and contamination.
Simple message selection and user-defined rules help prevent human error; all common functions are activated with just a few touches.
Less Downtime – Cost Savings
Apart from the cartridge, there are no other consumables or parts that need to be replaced.
Simple cartridge replacement can be completed in less than one minute, without special training.
High Speed, High-Resolution Printing
High-resolution printing at 600 × 600 dpi, up to 50.8 mm in height.

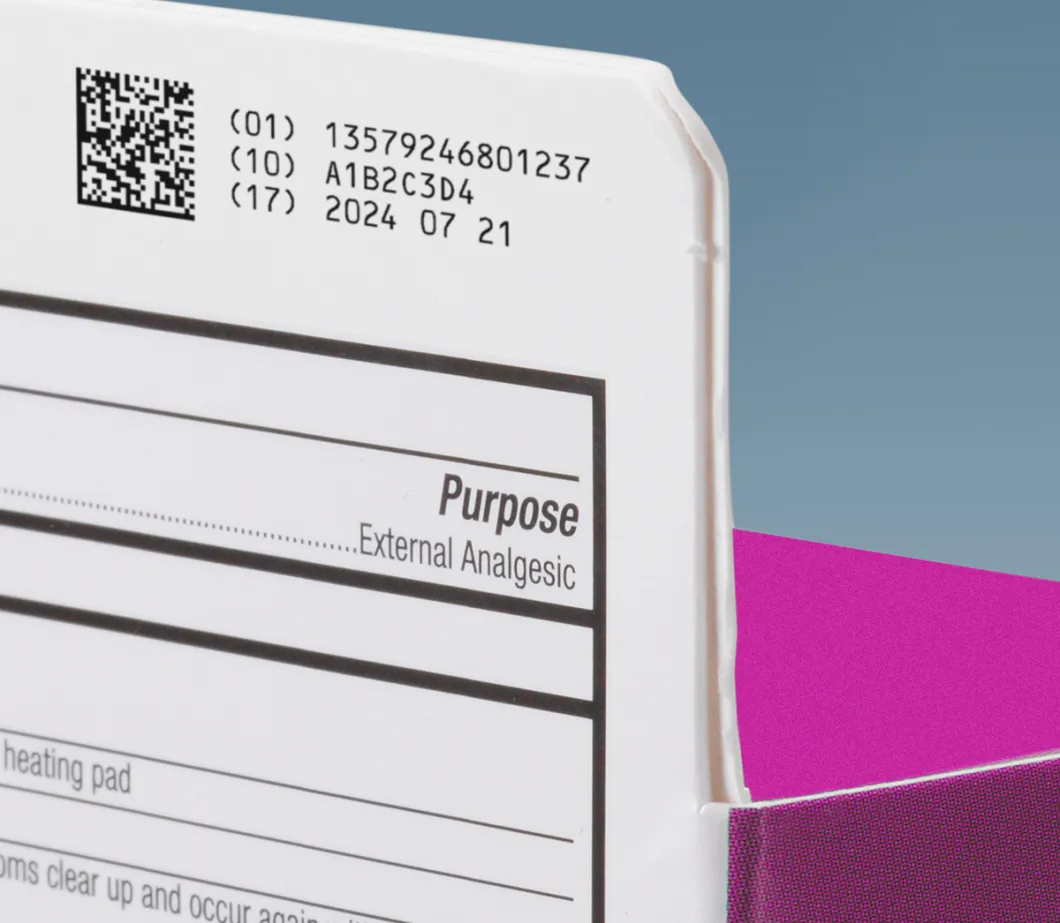

Wide range of barcodes, including DataMatrix and complex symbologies.
Maximum line speed of up to 75 m/min with excellent 600 × 240 dpi print quality — higher print speeds are possible at lower print quality.
Ideal for Integration into Packaging Lines; Adaptable to Your Business
Compact printer dimensions and design enable easy integration into existing production lines.
Integrate the printer using the web server function for third-party remote control via an HMI control screen.
Data interfaces include TCP/IP, RS232, USB, ZPL, and text communication.
Advanced communication protocol for remote control and extremely fast marking in serial production. The printer supports both text and binary communication and offers selected ZPL (Zebra Programming Language) emulation.
