High-Resolution Industrial Inkjet Printer
Videojet® 1880 HR
Continuous Inkjet Printer
Based on the 1880+ platform and equipped with unique connectivity capabilities, the 1880 HR produces high-resolution characters at the smallest scale through optimised fonts, a redesigned printhead, and advanced hydraulics. With a sustainable, low-maintenance design, this printer is created to meet your coding needs for 2D codes, QR codes, and track & trace identification codes.

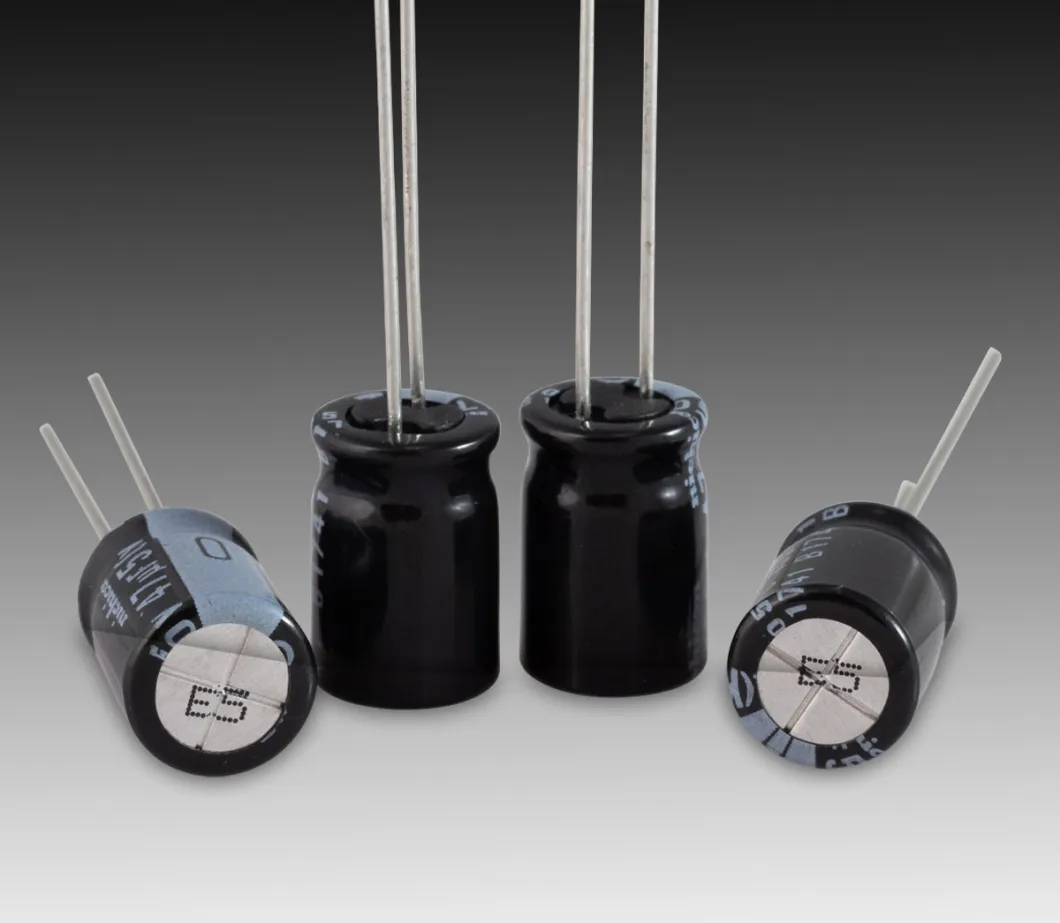

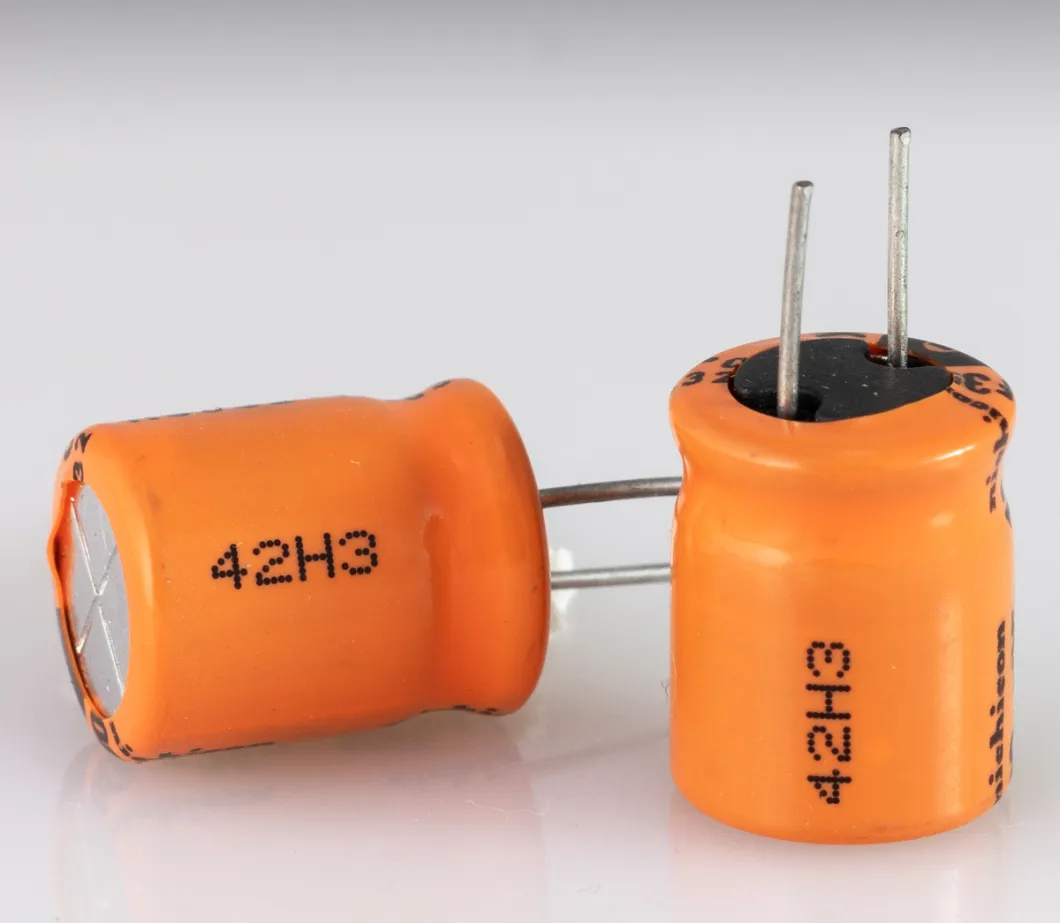

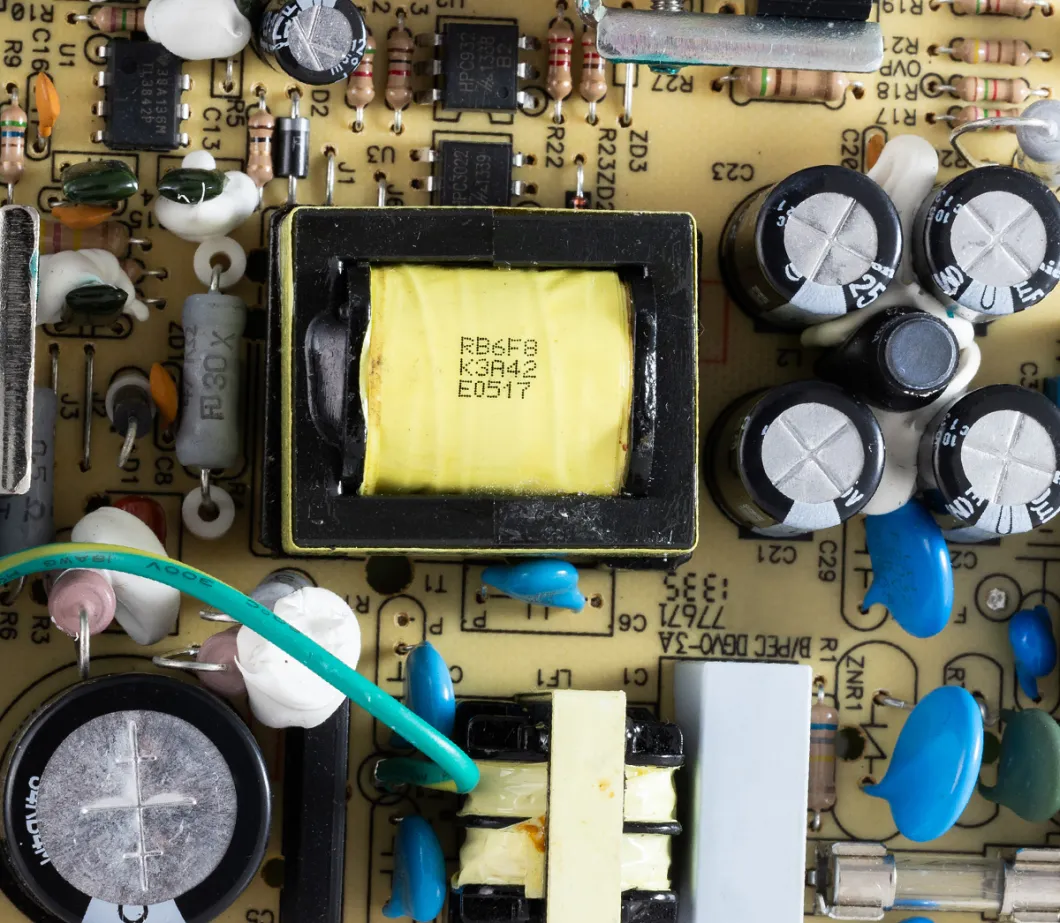

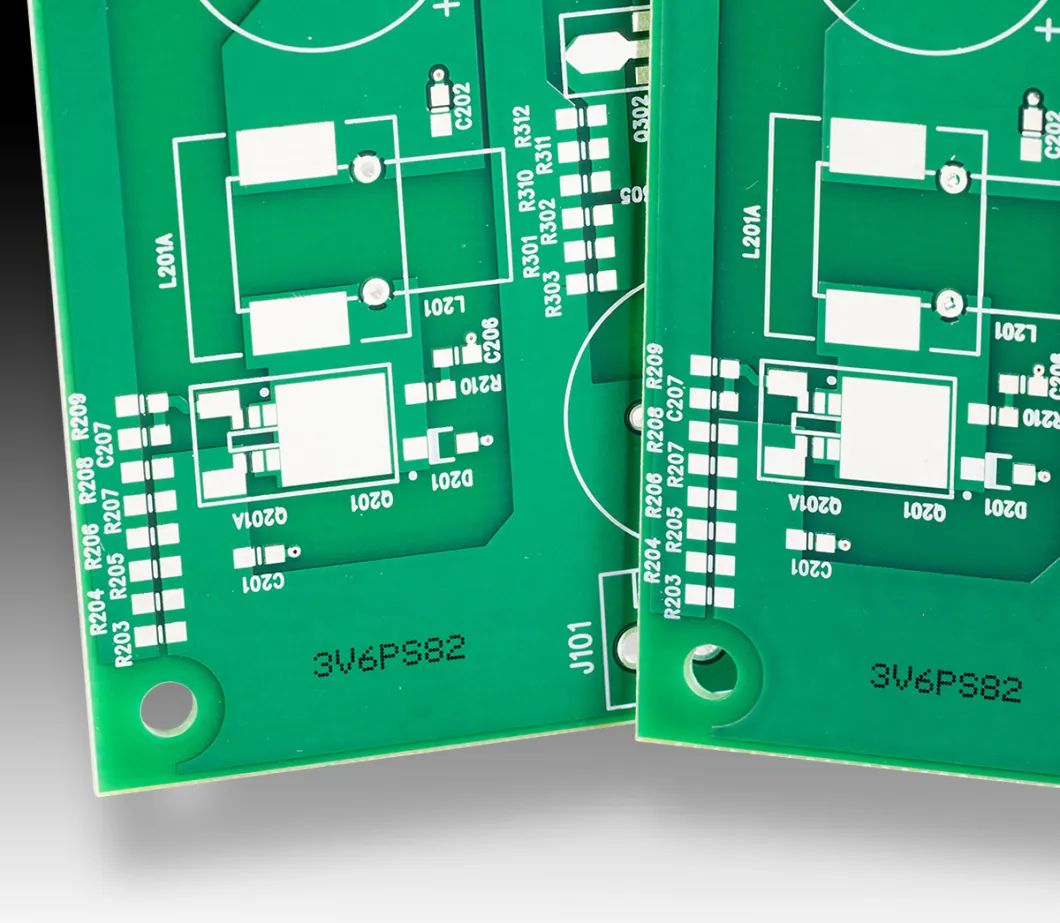

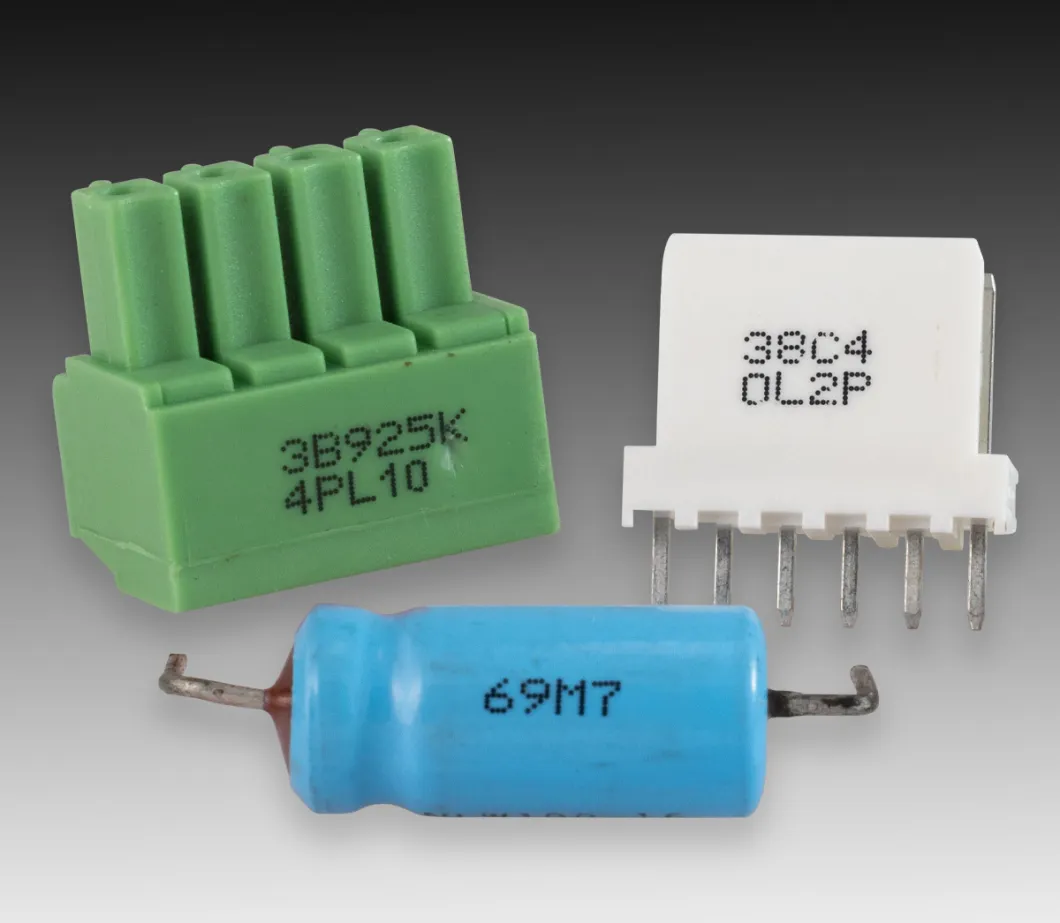

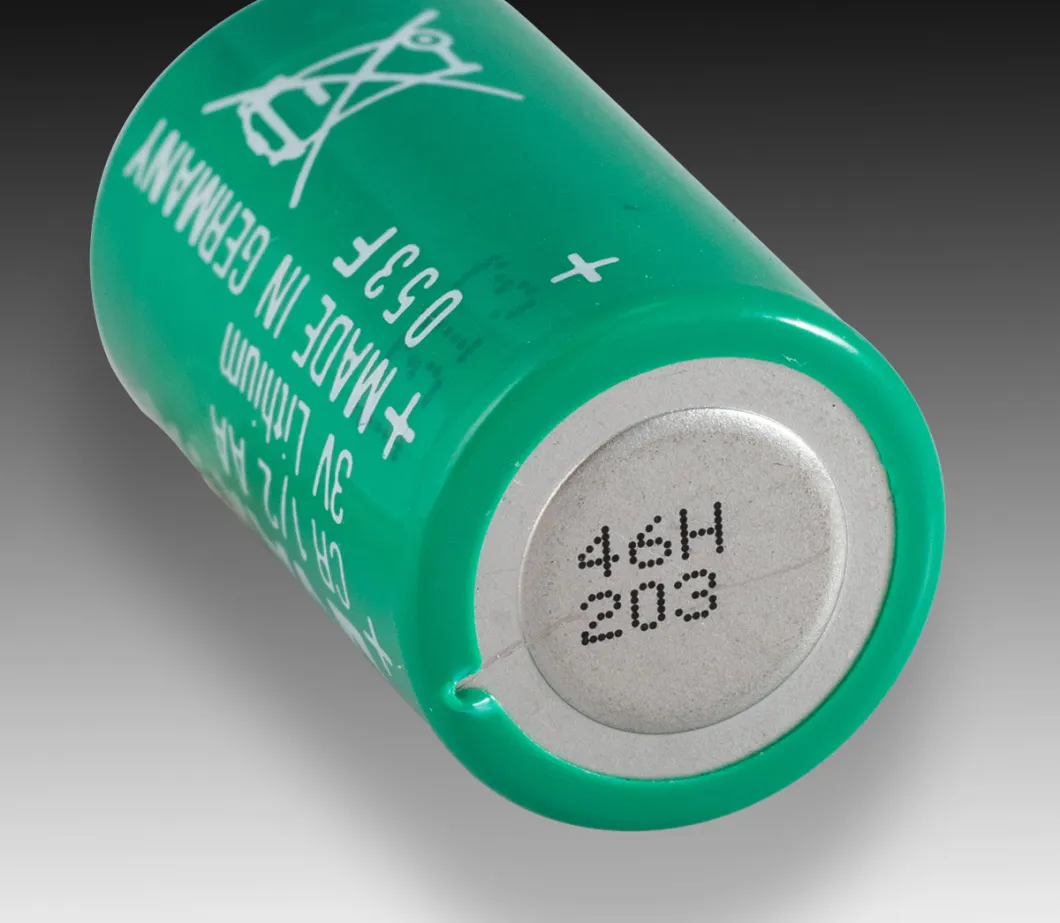

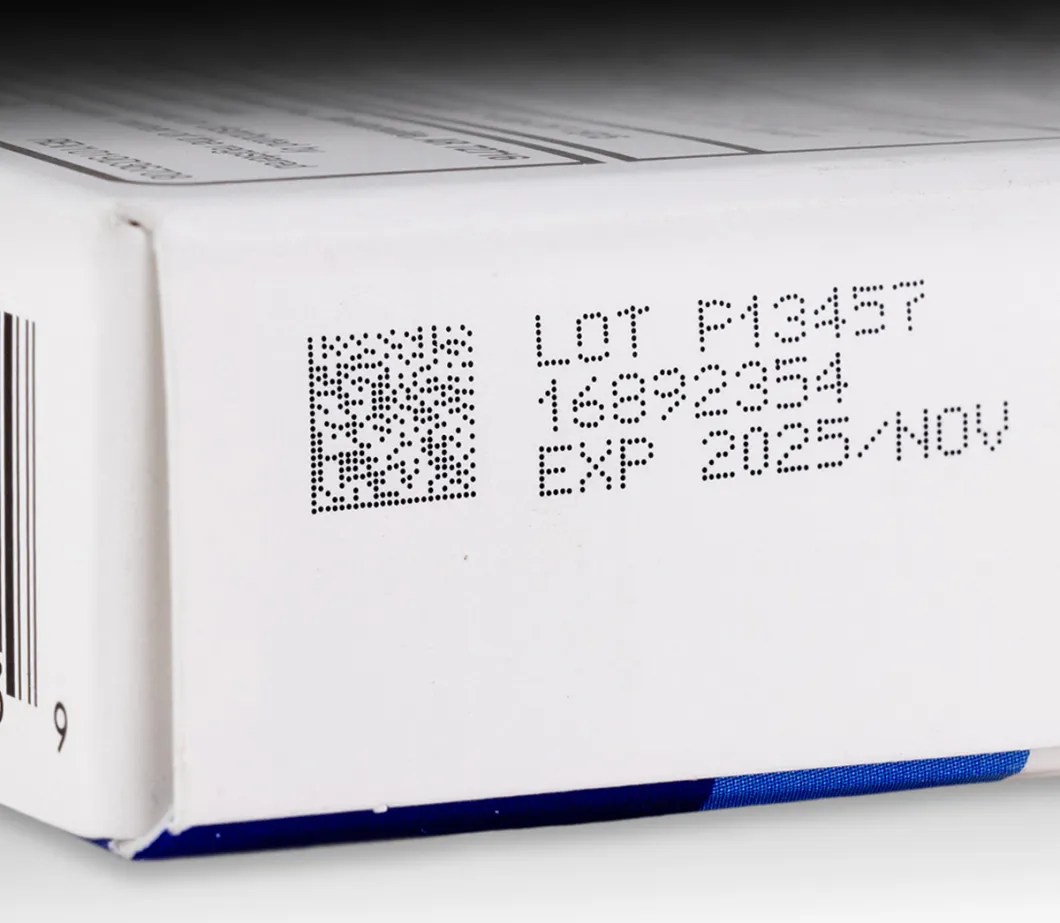

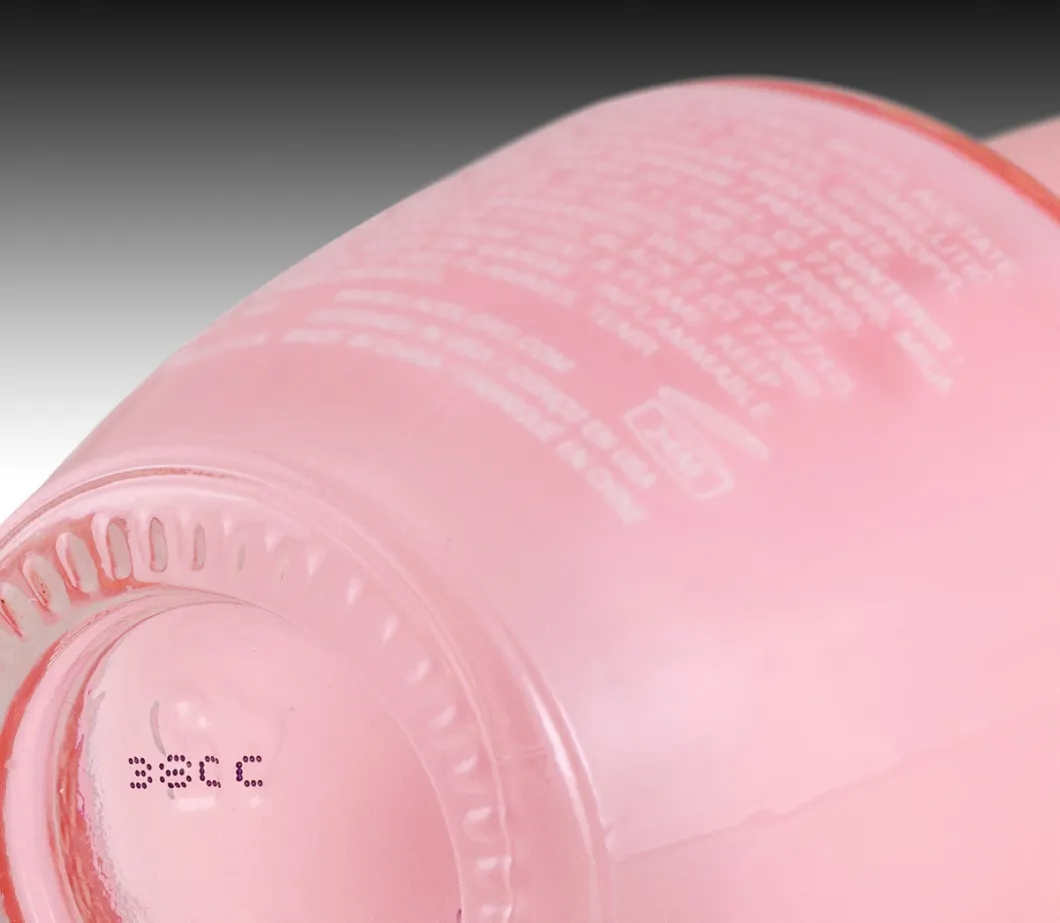

It has been developed to ensure the most reliable solutions for a wide range of applications, including electronics, pharmaceuticals, cosmetics, and the confectionery industry.
| Specification | Description |
|---|---|
| Ink | Dye-based ink |
| Maximum number of print lines per printhead | 3 |
| Maximum print speed (1) | 394 m/min (1,097 ft/min) |
| Protection rating | IP55, IP66 |
| Umbilical cable length | 3 m (9.8 ft), optional 6 m (19.6 ft) |
| Stored message capacity | More than 250 complex messages |
| Smart Cartridge™ | Yes |
| Plug and Play modular printhead | Yes |
| USB | Yes |
| Communication | Ethernet LAN and RS232 Serial (requires RS232 connector) |
| Positive Air / CleanFlow™ | Yes |
| Extended I/O ports and control | Optional |
| Display / user interface | SIMPLICiTY™ based on a 10.4″ colour touchscreen |
High-Resolution Micro Codes with Optimal Quality
- Exceptional code quality down to a height of 1.2 mm at speeds of up to 300 metres per minute
• Up to three lines of micro printing and complex 2D codes, ideal for applications where readability is critical and print space is limited
• Exceptional print quality and specialised fonts for QR codes provide high-quality codes for product traceability
Unlock Precision and Performance
- Compact printhead design for optimised ink drop placement and jet stability, maximising print performance
• Updated automatic modulation routine and advanced hydraulics help ensure consistent print quality throughout the entire production process
• Real-time viscosity measurements enable precise ink drop control at high speeds for clear, clean prints
Maximise Uptime
- Innovative ink build-up sensor notifies users only when printhead cleaning is required, optimising uninterrupted operation
• Convenient automatic flushing function ensures a worry-free, consistent, and efficient one-click printhead cleaning process
• Long service intervals and reduced contact minimise maintenance-related downtime
Benefit from Advanced Connectivity
- Integrated Wi-Fi and cellular* connectivity enable simple and secure wireless communication
• VideojetConnect™ Remote Service automates troubleshooting and simplifies remote operations
• Intelligent I/O capabilities help ensure seamless integration into production environments
