Industrial Inkjet Printer
Videojet® 1880 UHS
Continuous Inkjet Printer for High-Speed Applications

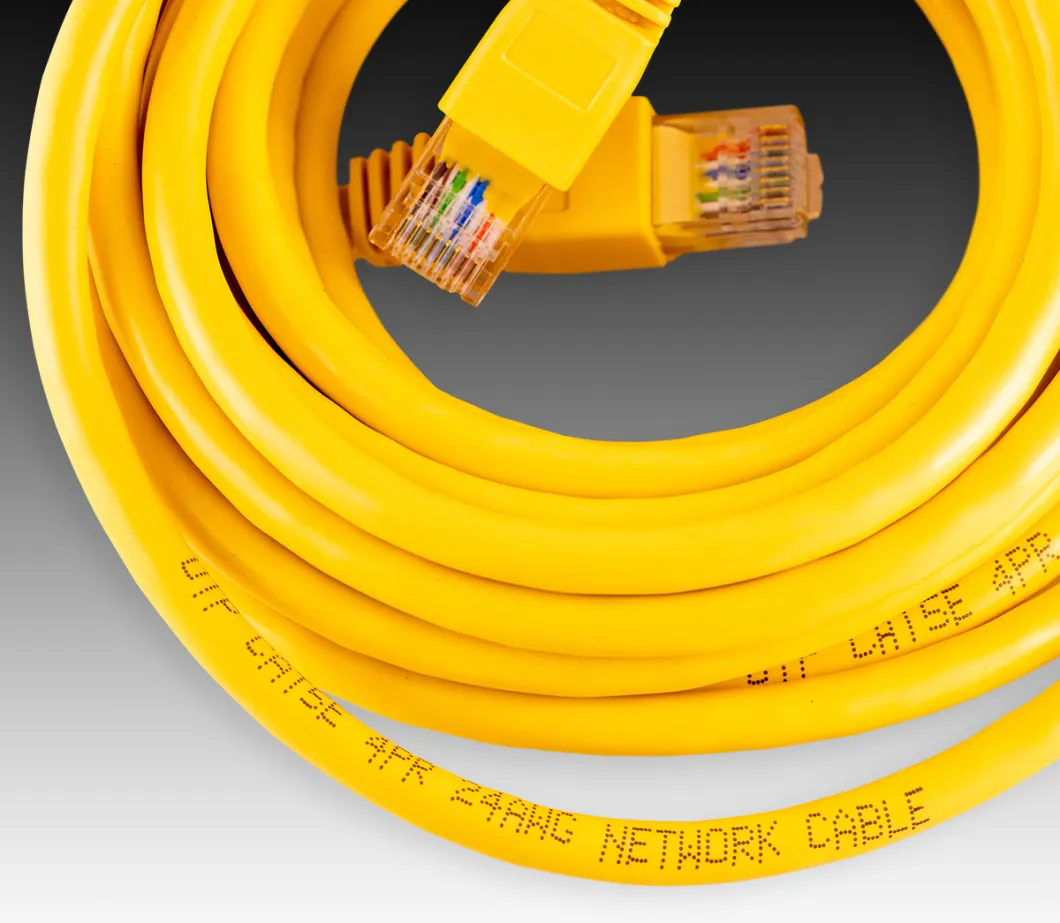

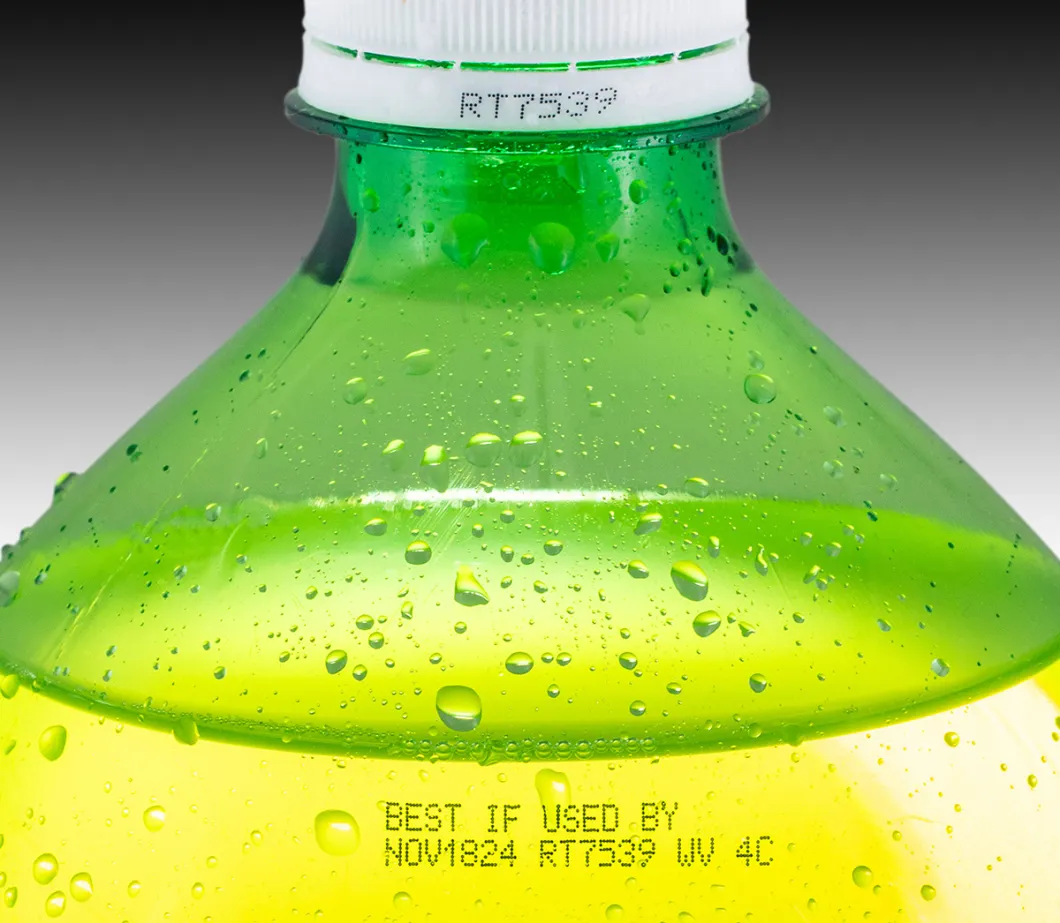

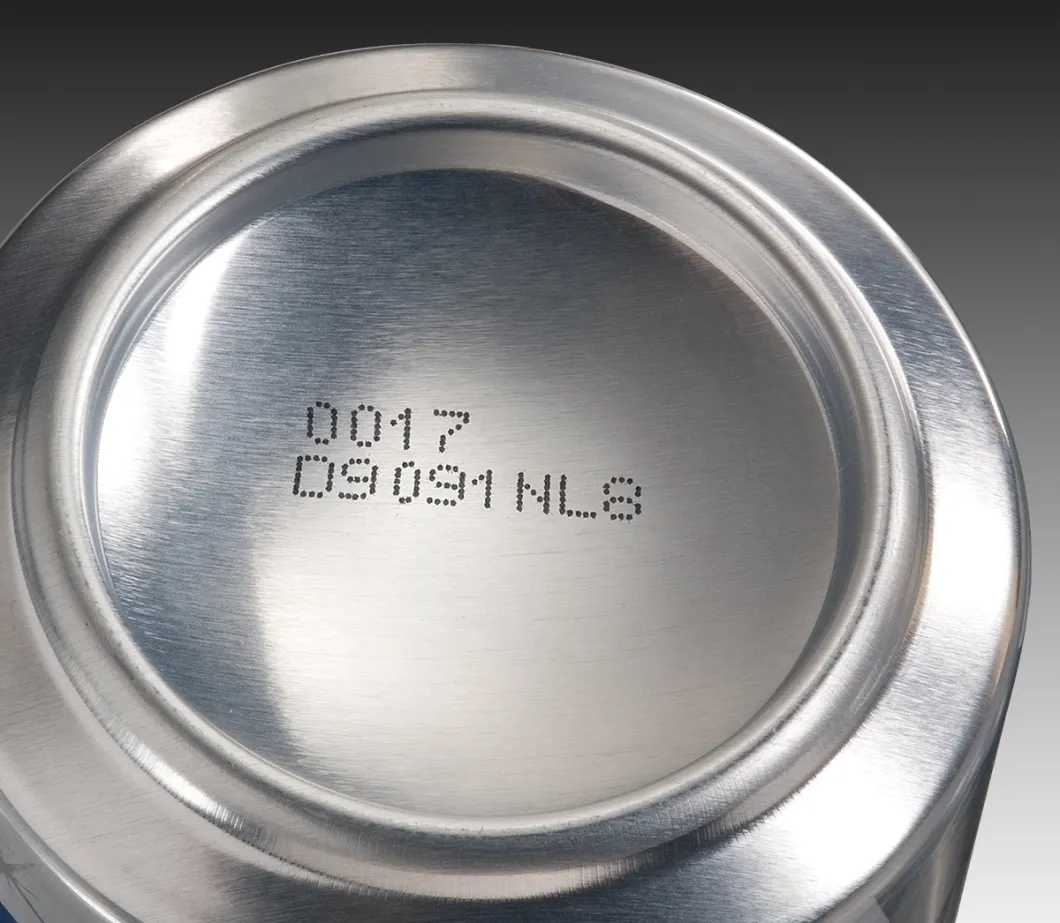

Based on the high-speed Videojet 1880+ platform, the Videojet 1880 UHS extends its capabilities to deliver higher productivity and connectivity for ultra-high-speed production lines in the canning, beverage, wire, and cable industries.
Designed to provide exceptional print quality and reliability, this industrial inkjet printer transforms high-speed coding applications by ensuring consistent print quality even at speeds of 500 m/min.
Routine maintenance is simple, with annual module replacement taking only 5 minutes.
| Specification | Description |
|---|---|
| Printhead | 1 |
| Inks | Fast-drying |
| Maximum print speed (1) | 508 m/min |
| Protection rating | IP55, IP66 |
| Maximum number of print lines | 3 |
| Hose length | 3 m, optional 6 m |
| Number of stored messages | More than 250 |
| Smart Cartridge™ fluid delivery system | Yes |
| Plug and Play modular printhead | Yes |
| USB | Yes |
| Communication | Ethernet LAN, RS232 — requires RS232 connector |
| Internal air pump / CleanFlow™ | Yes |
| Extended I/O ports and control | Optional |
| Display / user interface | SIMPLICiTY™ based on a 10.4″ colour touchscreen |
Consistent Quality at High Speeds
- Designed for the most challenging applications.
- Advanced print design enables high performance.
- An enhanced printhead helps achieve consistent print quality, even at speeds above 500 m/min.
Achieve Precision and High Performance
- Compact printhead design enables optimised positioning, improved ink drop control, and superior jet stability.
- Enhanced auto-modulation routines and advanced hydraulics help achieve consistent print quality.
Simplified Routine Maintenance
- Planned annual module replacement in less than 5 minutes with easy-to-replace, colour-coded Videojet SmartCell™ components.
- Longer intervals between required interventions.
- Significantly reduced downtime during routine servicing.
Maximised Uptime
- An innovative sensor helps detect ink build-up in the printhead, alerting users to potential print quality issues before they escalate.
- Simplified printhead cleaning at the touch of a button using automatic flushing.
- The 1880 UHS features an enhanced hydraulic management system, an extended make-up reservoir, and additional flexibility through the use of larger 1-litre cartridges.
Achieve Precision and High Performance
- Intelligent I/O capabilities provide standard industrial protocols for seamless integration into production lines.
- Built-in Wi-Fi and cellular* connectivity enable simple and secure wireless communication.
- VideojetConnect™ Remote Service automates troubleshooting, simplifies remote operations, and improves the overall productivity of the printer and production line in real time.
